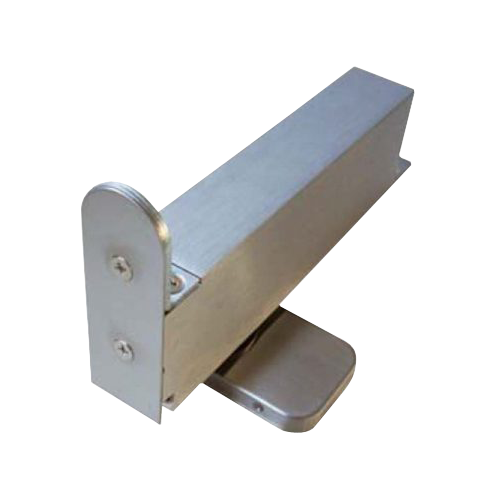

Pivot door closer for wooden Doors
Suitable for double action doors.
Applicable max door 1000mm wide
Maximum door 100kg
Quick and easy installtion
Low opening resistance and high closing efficiency
Simple final adjustment
Ambient temperature -20°C to +40°C
Cover plate in satin stainless steel as standard. Polished stainless steel available.
Complete with top pivot set.
With or without hold open at 90°
Door Width (max) : 950mmm
Max Opening Angle (max) : 150
PDC-103W pivot door closers offer easy opening with increased efficiency on the closing torque. The closing speed is easily adjustable via two independent adjustment valves.
PDC-103W is a high performance, slim line closer with easy installation, reducing cost and time as there is no floor preparation required
